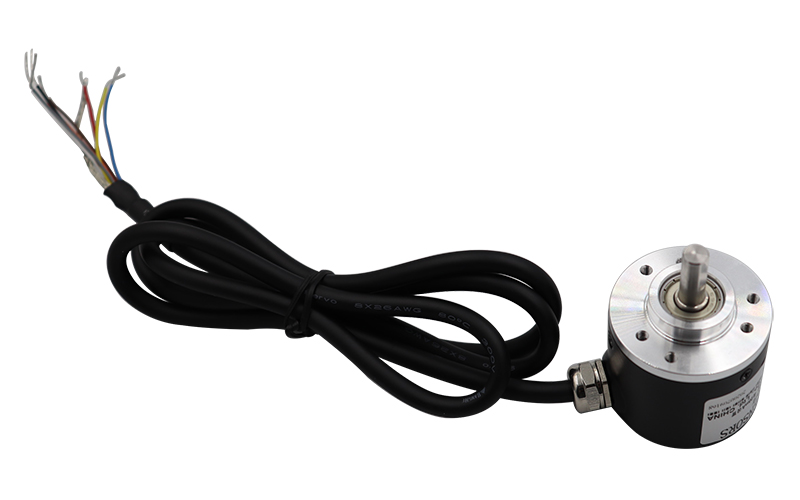

P2020 Magnetic Angle Sensor

Product Introduction

P2020 series non-contact magnetic angle sensor, 0-360° high-precision measurement,

?measurement accuracy 0.088mm, sensor power supply 5-24V DC, output 0-10V, 4-20MA?

or RS485 digital signal, can be used with all kinds of collectors, Digital display meter,

PLC system or computer use


產(chǎn)品參數(shù) | Product parameters

Mechanical parameters:

Dimensions: straight length: 38mm, body height: 33mm

Weight<200g

Maximum speed: 6000RPM

Spindle load: 20N in axial direction, 20N in longitudinal direction

Allowable axial movement: ±0.5mm

Allowable movement in warp direction: ±0.2mm

Connection form: solid shaft, semi-hollow shaft

Waterproof rating: IP65

Cable: Standard 8-core shielded cable 1 meter

Environmental parameters:

Working temperature:-25 ℃ to + 120 ℃

Storage temperature:-40 ℃ to + 125 ℃

Humidity: 90%RH

Anti-vibration: 10G

Impact resistance: 50G

?

Electrical parameters

Voltage range: 5-24VDC

Current: 50MA@12VDC

Power-on time: 100MS

Insulation resistance: >1MΩ


0-10V/4-20MA analog signal output

Range

Precision

Range

Precision

0-360°

0.088°

0-90°

0.022°

0-270°

0.066°

0-45°

0.011°

0-180°

0.044°

0-30°

0.007°

0-120°

0.029°

0-15°

0.004°

?

Application:

Various mechanical equipment corner detection, length/height measurement,

?and replacement of various potentiometers and other application fields.
